V90伺服系统自制电缆选型手册
完美的线束
Perfect harness

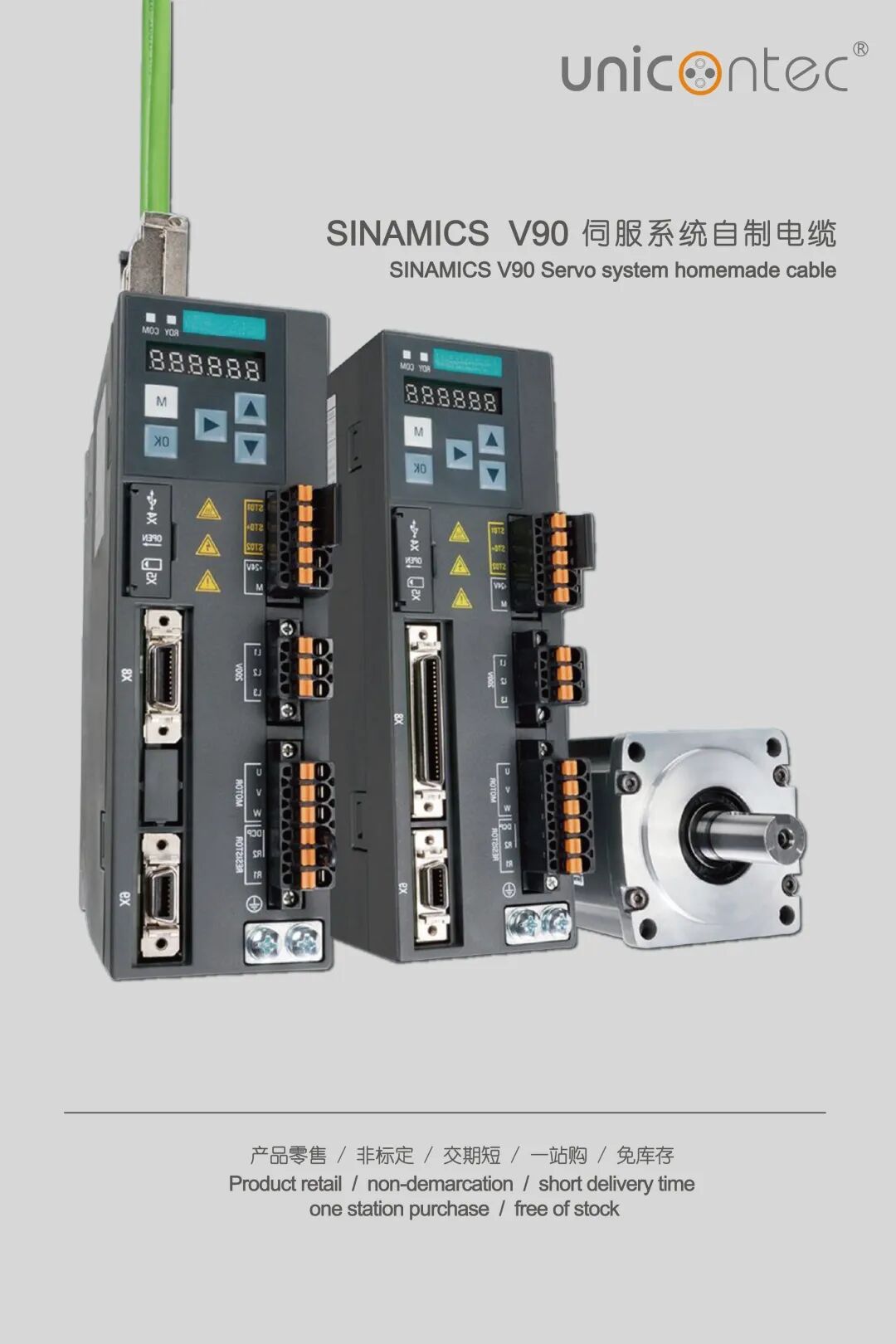

INAMICS V90是西门子公司推出的基本型伺服驱动器
可与SIMOTICS S-1FL6伺服电机组成
性能优良的伺服驱动系统
根据电机负载惯性大小的不同，
SINAMICS V90伺服驱动器可分为低惯性和高惯性两种。
低惯性伺服驱动器有1AC/230V和3AC/400V两种供电电压
功率范围从0.1KW到2KW。低惯性伺服驱动器连接低惯性伺服电机
（SH20、SH30、SH40和SH50）可组成高动态响应系统
最大转速高达5000转/分钟。
高惯性伺服驱动器的供电电压为3AC 400V，功率范围
从0.4KW到7KW。高惯性伺服驱动器连接高惯性伺服电机（SH45、SH65和SH90
具有更高的扭矩精度和极低的速度波动
额定扭矩输出达33.4Nm，可保证更优良的产品品质。

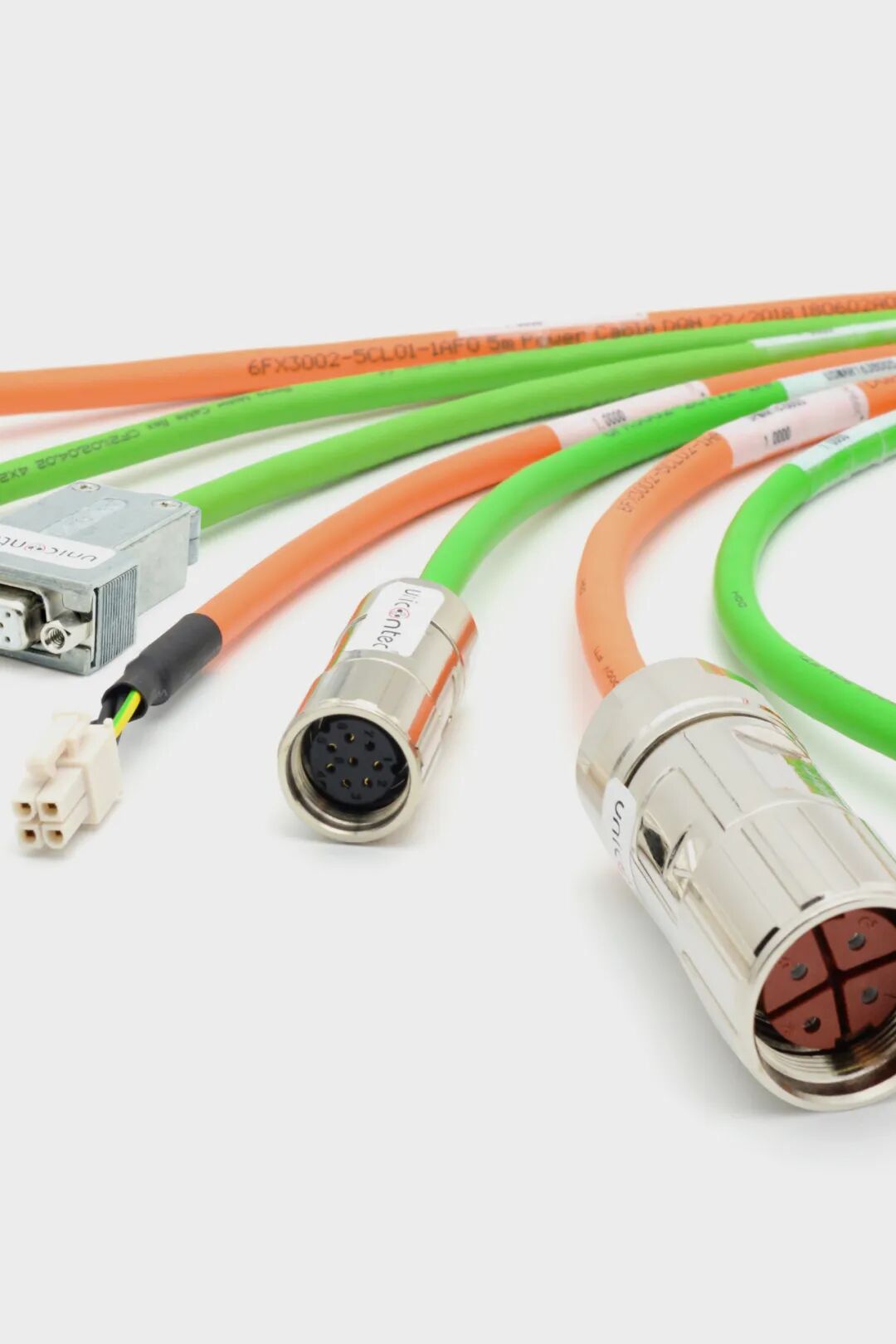

Unicontec为配合高低惯量的不同电机使用与
工业专用的线缆以提供6FX系列西门子的标准线束，
从0.5M到实际需要的任意米数。满足您实际需要的要求，
同时为你提供更加优惠的价格，方便您的需求
For every industrial process
on is not tightSeparable, so good electrical connection
is essential in the industrial process. For this reason,
Lilian also aims at the electrical interconnection of each industrial
process in many industries to
achieve the best state of electrical
interconnection. Here we introduce the
industrial wiring harness of Lilian

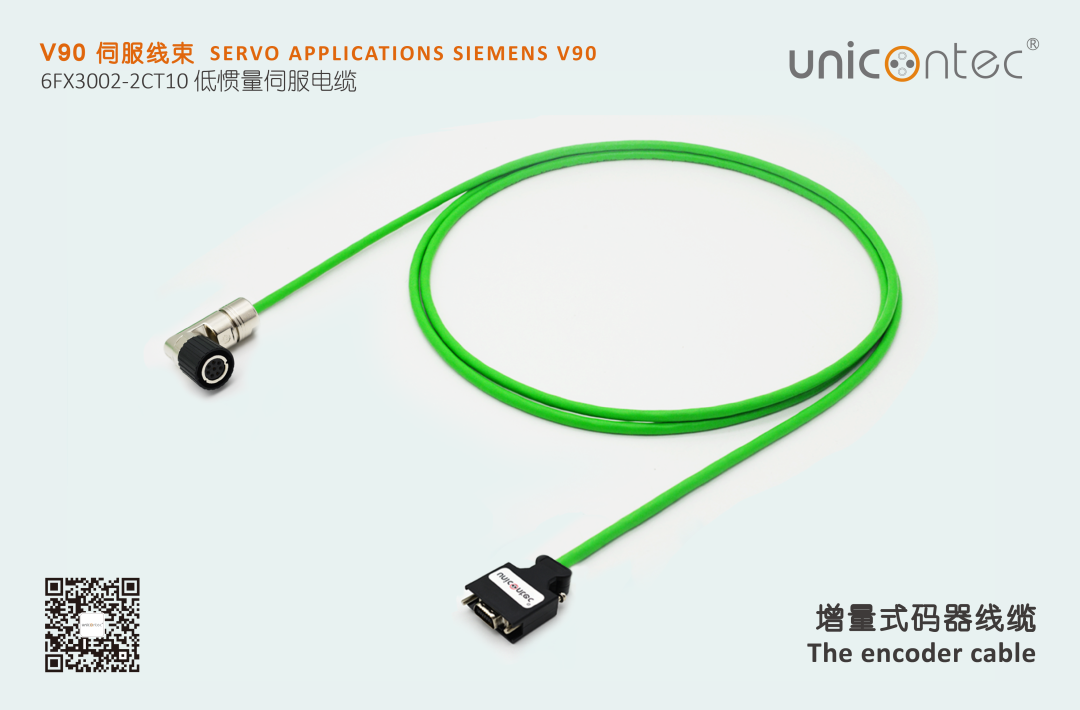

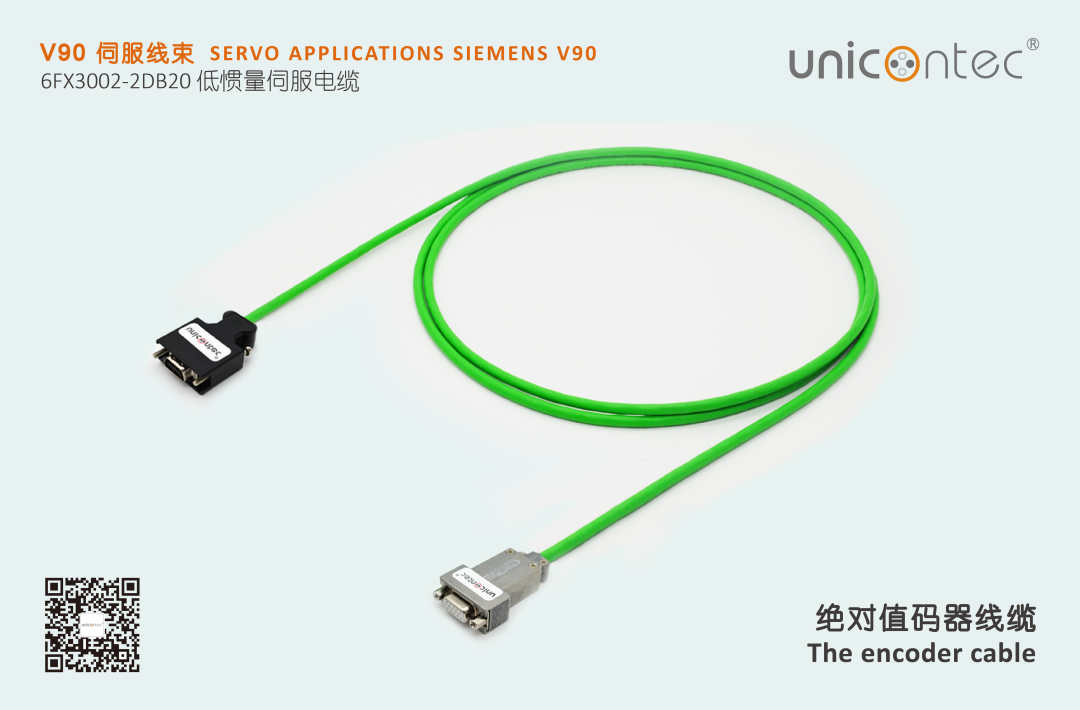

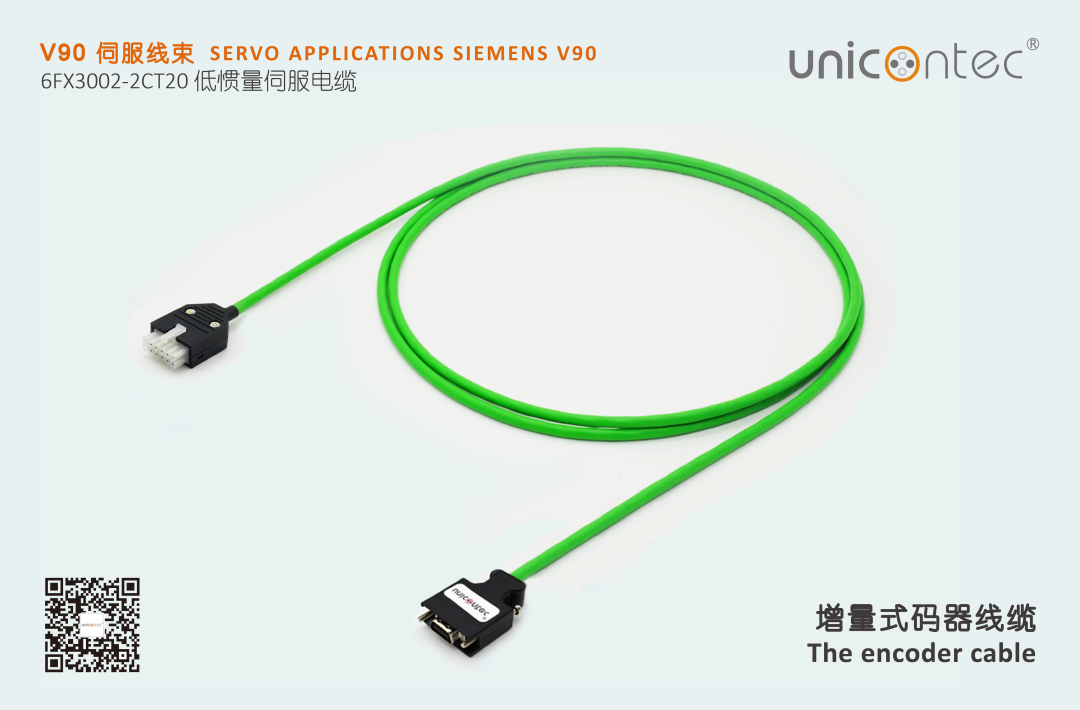

6FX3002 低惯量伺服电缆系列
6FX3002 low inertia servo cable series
高惯量与低惯量电机的区别？
What is the difference between a high inertia
motor and a low inertia motor?
低惯量电机：可用于高动态性能的应用，
电机转动惯量极低，加速更快。
高惯量电机：可用于要求运行平稳的应用
电机转动惯量高，因此转矩精度高，速度波动小，
产品质量更佳。
所以在这些电机上的电缆的要求分别也是各不相同
针对这些不同的要求Unicontec也是选择的不同的电缆配对
这些不同的电机，选择更加优质的电缆，
为电机的运行提供的有力得到保障
Low inertia motors：can be used in applications
with high dynamic performance,
The motor has a very low moment of inertia
and accelerates faster.
High inertia motor: can be used in applications requiring smooth operation The motor has a high moment of inertia, so the torque precision is high and the speed fluctuation is small.
The product is of better quality.
So the requirements for cables on these motors are also different
Unicontec also chooses
different cable pairs for these different requirements
These different motors, choose a better cable,
For the motor operation to provide a strong guarantee

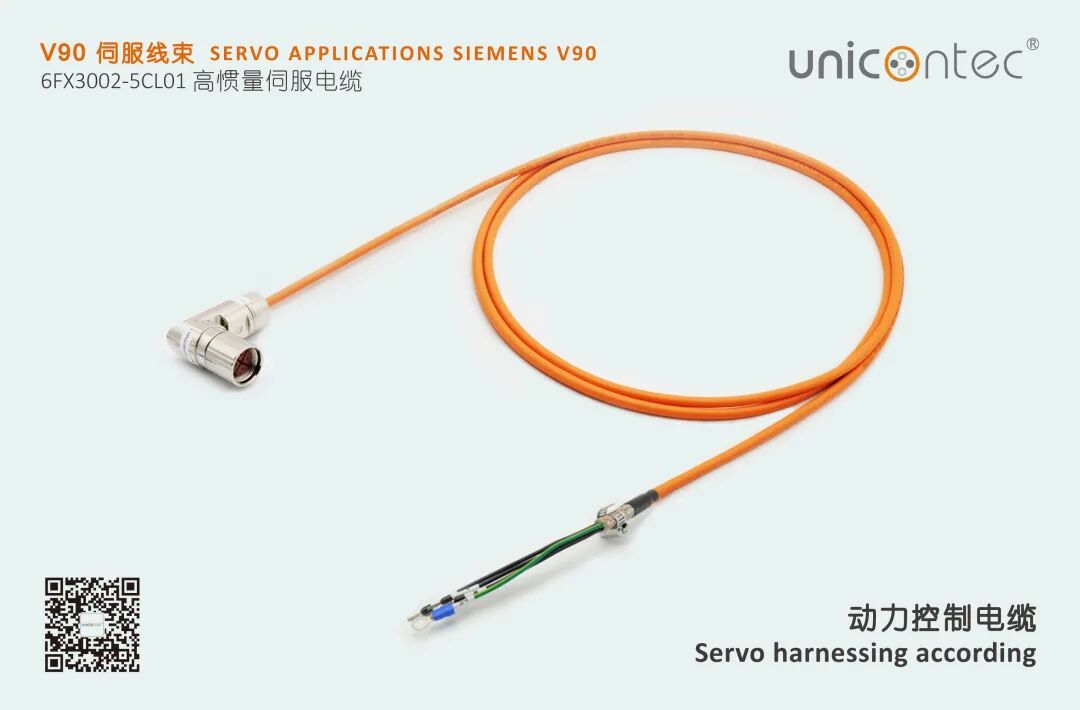

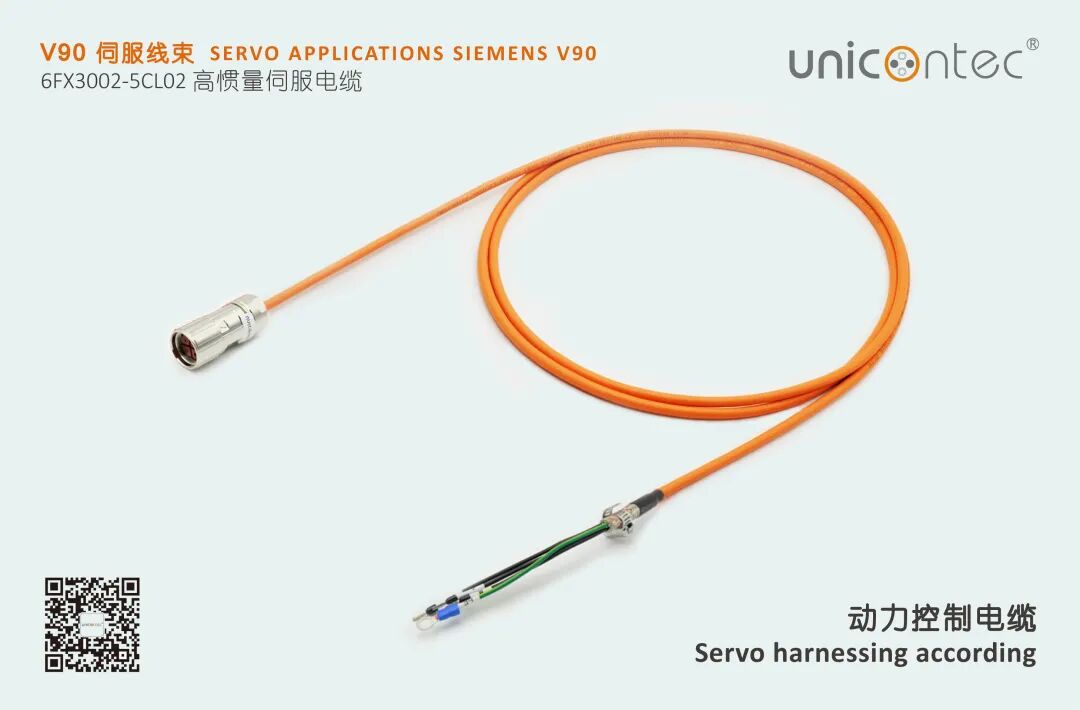

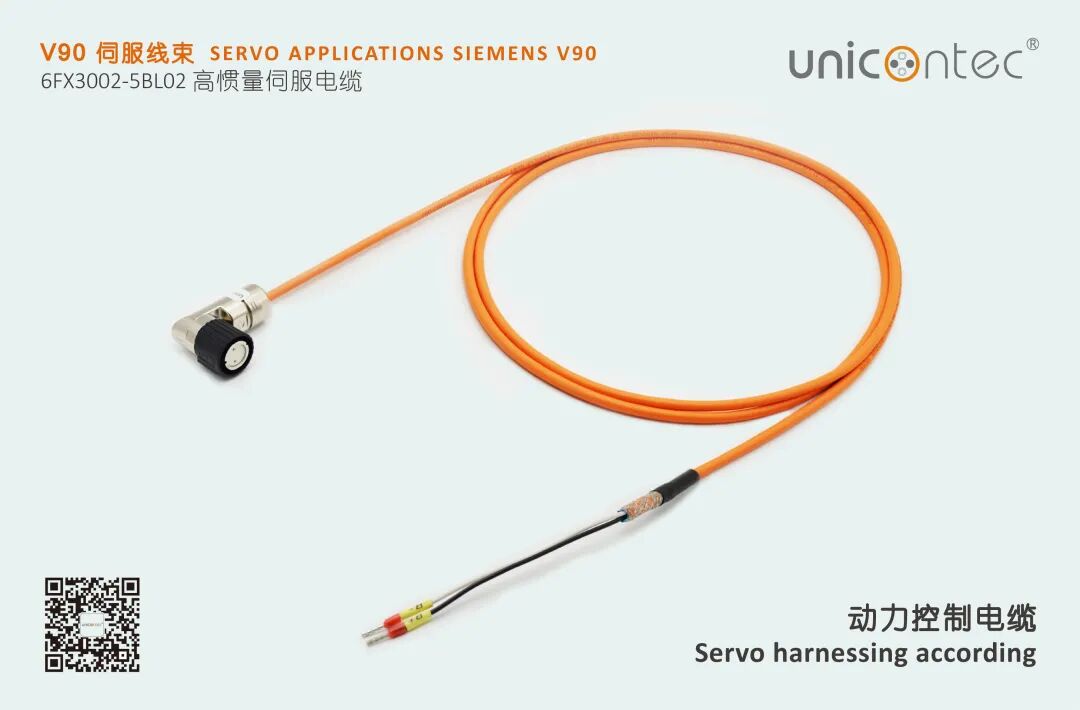

6FX3002 高惯量伺服电缆系列
6FX3002 High inertia servo cable series
专业的流程
Professional process
为了努力成为全球领先的互连解
决方案制造商。我们公司也引进最先进的设备
与生产制程，通过创新的产品及服务以求达到客
户的技术要求，并提供客户满意且完整的解
决方案，也为客户提供更广泛的高
附加值产品服务。
For that we Strive to become the world's leading
interconnection solution system Manufacturers. Our
company also has the most advanced equipment Work with manufacturing processes through innovative products and
services In order to meet the technical requirements of
customers, and provide customers Customer
satisfaction and complete solutions, also for customers
Provide a wider range of high
value-added products and services.
立足当前 放眼长远
Focus on the present，take the long view
乐连智能开拓进取
以创新为动力，以质量为生命，
大力开发国内外市场，力争攀登行业高峰。
我们愿与各界朋友
一起推进国内工业自动化
快速发展而努力奋斗
Lilian intelligent pioneering and enterprising
With innovation as the driving force and
quality as the life,Vigorously develop domestic and
foreign markets, and strive to climb the
industry peak.We are willing to make
friends with all walks of lifeWe will work together
to promote domestic industrial automation
The rapid development
And strive for it
